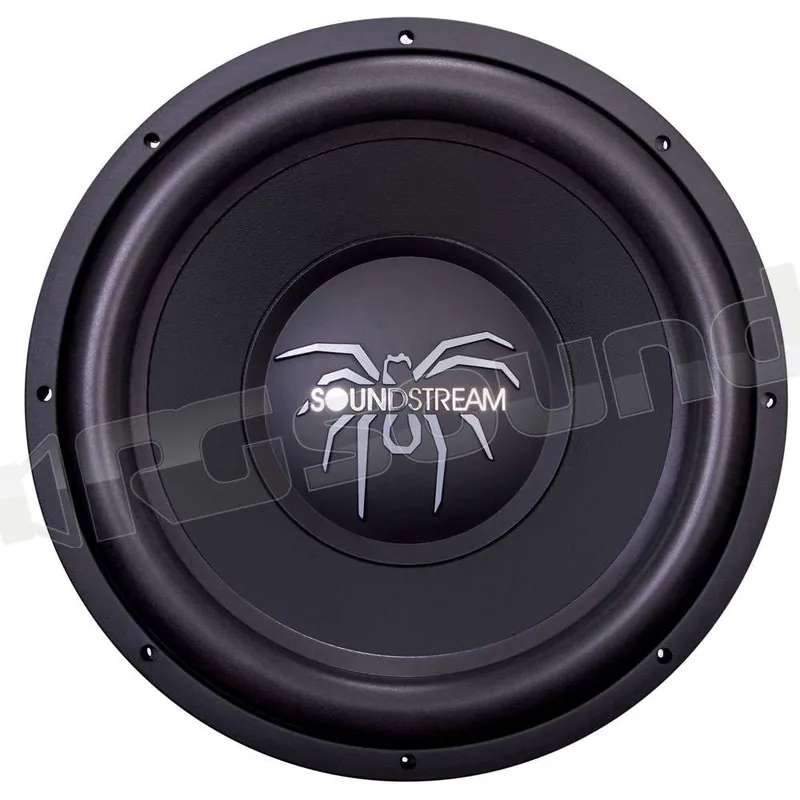

SPLX-152HF subwoofer 380mm Soundstream serie TARANTULA – Potenza 1250W
Serie TARANTULA del 2013.
SPECIFICHE SPLX-152HF
- RMS Power (watts) 1,250
- Efficiency (1w/1m dB) 90.05
- Voice Coil Configuration 76mm DVC 2Ω
- Cast Aluminum Frame
- Dual 2 ohm 76" CCAW Coils
- Vented Back Plate
- Epoxy Coated Spruce Pulp Cone
- Dual NOMEX Spiders
- Re-cone Kits Available
| Soundstream | SPLX-152HF |
|---|---|
| Fs (hz) | 35.96 |
| Qms | 6.476 |
| Vas (ft^3) | 3.052 |
| Cms (mm/n) | 0.0794 |
| Mms (g) | 247.1 |
| Xmax | 13.00 |
| Xmech | 19.50 |
| Dia (in.) | 13.19 |
| Sd (in^2) | 136.6 |
| Vd (ft^3) | 0.0606 |
| Qes | 0.503 |
| Re (ohms) | 2.95 |
| Z (ohms) | 4 |
| BL | 18.09 |
| Pe (volts) | 35v/50vBurp |
| Pe (watts) | 1.25k/2.5k Burp |
| Qts | 0.467 |
| No | 0.78 |
| 1w/1m | 90.95 |
| VC DIA (IN) | 3.0 |
| VC (Ohms) | DVC2 |
| M-vd (ft^3) | 0.298 |
| Cut-out | 14.125 |
| Depth | 8.375 |
Recommended Enclosures
| High Tuning | |
|---|---|
| SM 50Hz | 3.00 ft³ |
| Round Ports | (2)4"x6.5" |
| Fb | 50.44 |
| F3 | 42.96 |
| Spike dB/Hz | |
| MED 50Hz | 4.00 ft³ |
| Round Ports | (4)4"x12.25" |
| Fb | 50.08 |
| F3 | 41.44 |
| Spike dB/Hz | |
| LG 50Hz | 5.00 ft³ |
| Round Ports | (6)4"x16.5" |
| Fb | 50.07 |
| F3 | 40.81 |
| Spike dB/Hz |
| Low Tuning | |
|---|---|
| SM 40Hz | 4.00 ft³ |
| Round Ports | (2)4"x8.25" |
| Fb | 39.95 |
| F3 | 35.35 |
| MED 35Hz | 5.00 ft³ |
| Round Ports | (2)4"x8.5" |
| Fb | 34.95 |
| F3 | 31.39 |
| LG 30Hz | 6.00 ft³ |
| Round Ports | (2)4"x10" |
| Fb | 30.04 |
| F3 | 28.08 |
Scheda tecnica apri »
Prezzo iva inclusa
€ 139,50
