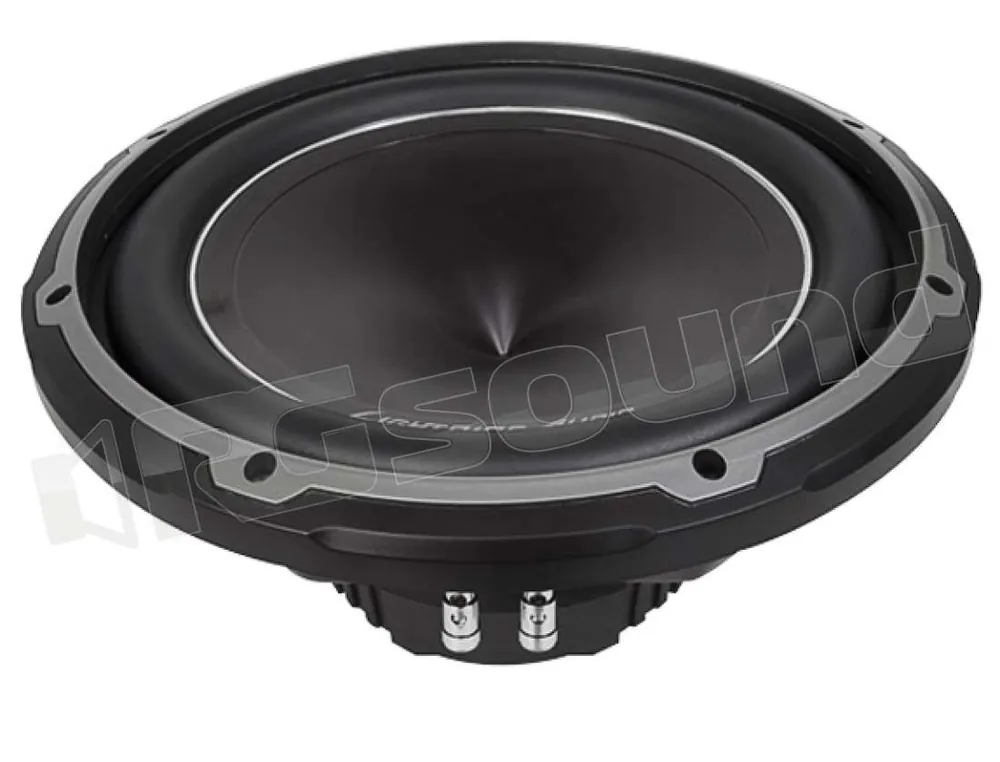

Lightning Audio LA-S412 Single Voice Coil Subwoofer 300mm (12") 4-Ohm
Polypropylene Cone
Synthetic Rubber Surround
Rubber Magnet Cover
Spring Loaded Terminals
Subwoofers add impact and complete the audio spectrum of sound by accurately reproducing low frequency music notes. The Lightning Audio 12" Single Voice Coil subwoofer takes a marginal amount of room in an easy constructed sealed or vented enclosure. For best results, we suggest at least 5/8" particle board or for optimum bass, use 3/4" Medium Density Fiberboard.
Specifiche LA-S412
Subwoofer bobina singola, cestello in alluminio
| Size | 12" |
| Impedance | 4-Ohms |
| Power Handling | 400 Watts MAX |
| Voice Coil Diameter | 2" |
| Speaker Connector | Spring Loaded Terminals |
| SPL (1w/1m) | 85dB |
| Woofer Displacement | .07 cu. ft. (1.9 Liters) |
| Cutout Diameter | 10.9" |
| Mounting Depth | 5.8" |
| Recommended Sealed Enclosure | 1.00 cu.ft. (28.32 Liters) |
| Recommended Vented Enclosure | 2.00 cu.ft. (26.64 Liters) |
| Tuning Frequency (vented) | 38Hz Port: (2) 3" x 14.50" (7.62cm x 36.83cm) |
| Shipping Weight | 12.1 Lbs. (5.5 Kg.) |
Manuale utente apri »
