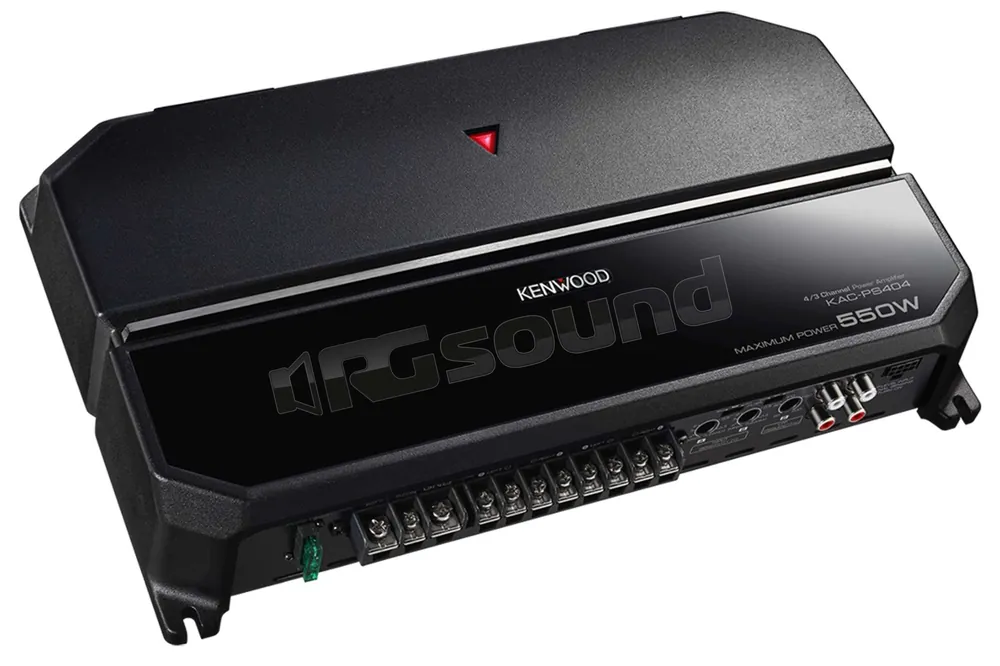

Kenwood KAC-PS404 amplificatore a quattro canali Serie Performance Standard, la linea top degli amplificatori Kenwood, fornisce dinamiche eccezionali tenendo una riproduzione musicale di alto livello
Caratteristiche tecniche del KAC-PS702EX
Performance Standard Serie
4 channel, 3 channel or 2 channel setup
550W Maximum output power
Built-in Variable Low-pass filter
Built-in High-pass filter (80Hz: ON/OFF)
Signal Sensing Turn-on
Speaker level input
Power MOS-FET switching power supply
Die cast aluminium heat sink
Amplifier Features
Load Capability 2Ω Stable
Maximum power output 550W
Rated power output (4Ω) 40W x 4 (4Ω)
Rated power output 60W x 4 (4Ω)
Bridged power output (4Ω) 130W x 2
CEA-2006 Compliant
Low-pass Filter
High-pass Fliter
Switched Mode Power supply, MOS-FET
Signal Sensing Turn-on
Line in 4 RCA / Speaker level
Speaker level Input
Single Side Terminals
Die-Cast Aluminium Heat Sink
Amplifier-Specifications
Rated power output (4Ω, 14,4V) 40W x 4 (20Hz ~ 20000Hz, 1%THD)
Rated power output (2Ω, 14,4V) 60W x 4 (1000Hz, 1%THD)
Rated power output (CEA-2006) 70Watts RMS x 4 at 4 ohms and 1% THD
Low-pass Filter 50~200Hz (24dB/oct)(B-Channel)
High-pass Fliter 80Hz (-12dB/oct)A-channel only
RCA Input Sensitivity 0.2 ~ 5V
Speaker Level Input Sensitivity 4 ~ 12V
Input Impedance 10k Ohm
Signal to Noise Ratio 100dB
Signal to noise ratio (CEA-2006) 80dBa (Reference: 1 Watt into 4 Ohms)
Frequency response (+0dB, -3dB) 20Hz ~ 50Hz
Operating voltage 14.4V (11V – 16V allowable)
Maximum current consumption 18A
Dimensions (WxHxD) 335 x 56 x 204 mm
Weight 2.5 kg
