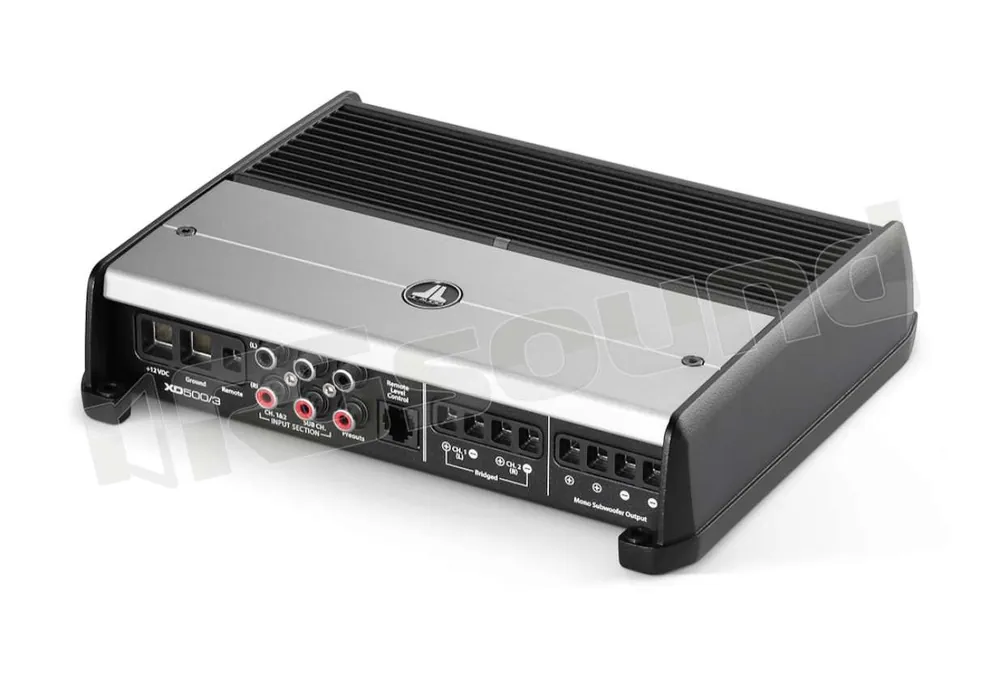

JL Audio XD500/3 Serie XD amplificatore compatto a 3 canali in Classe D
Caratteristiche amplificatori Serie XD
Con le loro dimensioni estremamente compatte e la loro versatilità, abbinate ad una buona resa sonora, gli amplificatori della Serie XD rappresentano la soluzione perfetta per chi ha poco spazio a disposizione ma non vuole rinunciare alle prestazioni di un amplificatore di qualità e potenza.
La tecnologia NexD ne garantisce un'efficienza nettamente maggiore e un'eccellente sezione di processione del segnale.
Caratteristiche tecniche JL Audio XD500/3
Potenze nominali:
Main Channels @ 4 Ω 75 W RMS x 2
Main Channels @ 2 Ω 100 W RMS x 2
Main Channels – Bridged @ 4Ω 200 W RMS x 1
Subwoofer Channel @ 4 Ω 180 W RMS x 1
Subwoofer Channel @ 3 Ω 240 W RMS x 1
Subwoofer Channel @ 2 Ω 300 W RMS x 1
Frequency Response (Main Channels) 12 Hz – 22 kHz (+0, -1dB)
Frequency Response (Subwoofer Channel) 10 Hz – 1 kHz (+0, -1dB)
S/N Ratio, referred to highest rated power (Main Channels) >104 dB below rated power (A-weighted, 20 Hz – 20 kHz noise bandwidth)
S/N Ratio, referred to 1 W >84 dB (A-weighted, 20 Hz – 20 kHz noise bandwidth)
Damping Factor @ 4 Ω >120 / 50 Hz
Damping Factor @ 2 Ω >60 / 50 Hz
THD+N @ Rated Power (Main Channels)<1% @ 2 Ω per Ch.
THD+N @ Rated Power (Subwoofer Channels)<1% @ 2 Ω per Ch.
Input Voltage Range @ RCA Inputs100 mV – 4 V RMS
Min.Copper Power / Ground Wire Gauge4 AWG wire
Fuse Rating50 A (AFS, AGU or MaxiFuse™)
Filter Mode(s): Channels 1 & 2 (front)
High-Pass only
Filter Slope(s): Channels 1 & 2 (front)12 dB/octave
Filter Frequency Range: Channels 1 & 2 (front)50 Hz – 500 Hz
Filter Mode(s): Channels 3 & 4 (rear)N/A
Filter Slope(s): Channels 3 & 4 (rear)N/A
Filter Frequency Range: Channels 3 & 4N/A
Filter Mode(s): Subwoofer ChannelLow-Pass only
Filter Slope(s): Subwoofer Channel12/24 dB/octave
Filter Frequency Range: Subwoofer Channel50 Hz – 500 Hz
Detented, Calibrated Filter Freq. PotentiometersYes
Filter Defeat FunctionYes
Infrasonic Filter: Subwoofer Channelnone
Remote Level ControlOptional (HD-RLC)
Remote Level ModesSub Ch. or All Channels
Channel Input Mode SwitchYes (2/4 ch.)
Pass-Through Preamp OutputBuffered
Source Channel Selection for PreOutsYes (1&2/Sum/Sub)
Dimensioni e peso:
Height (H) 2.05 in / 52 mm
Width (W) 8.52 in / 216 mm
Depth (D) 7.09 in / 180 mm
Net Weight 4.8 lb / 2.18 kg
