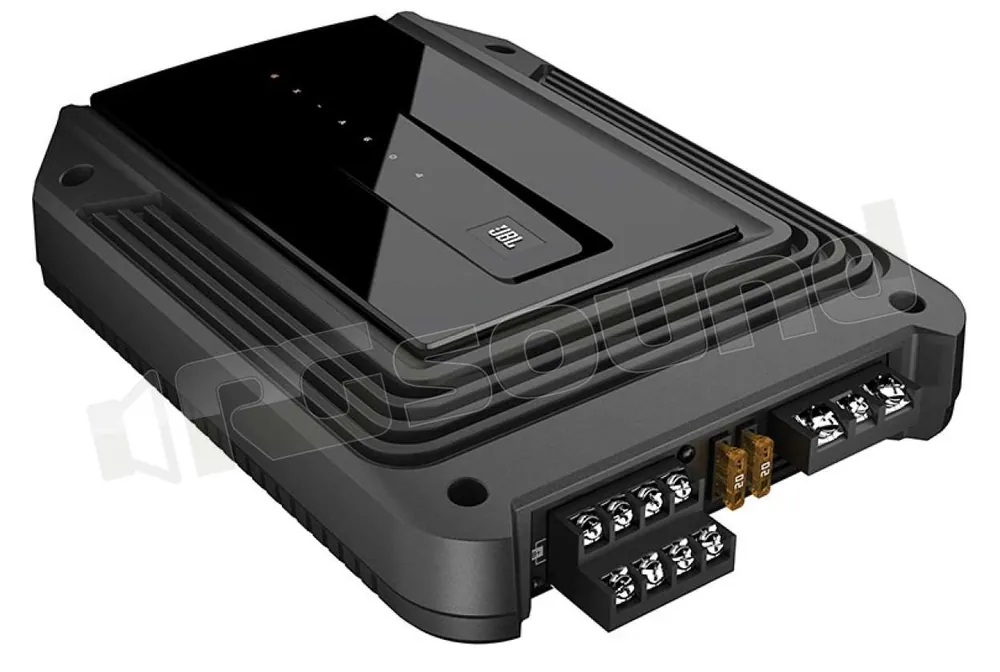

GX-A604 amplificatore a quattro canali
Powerful and Compact 435-Watt Amplifier
- 4-Channel Full Range Amplifier
- Class AB
- 60 Watts RMS x 4 channels @ 4 ohms
- 85 Watts RMS X 4 channels @ 2 ohms
- 170 Watts RMS x 2 bridged into 4 ohms
- Speaker Level inputs w/auto turn-on via MOLEX-style connector
- RCA inputs
- Switchable (on/off) Bass Boost +12dB @ 45Hz on Channels 1 and 2
- Fully Variable 12dB/octave HP/LP/FLAT crossover on Channels 1 and 2
- Switchable (on/off) 12dB/octave 80HZ HP channels 3 and 4
- Supports 4-channel full range or high pass operation, 3-channel mixed mode, or 2-channels bridged for a subwoofer
CARATTERISTICHE
| Audio Specifications | |
|---|---|
| Number of Channels/Type | 2 channels |
| 4-Ohm Power Output | 60 W rms x 2, |
| 2-Ohm Power Output | 85 W rms x 2, |
| Bridged Power Output | 170 W x 1 into 4 ohms |
| Total Peak Power Output | 280 Watt |
| Signal-to-noise Ratio (IHF-A) | 93 dB |
| Frequency Response | 20 Hz – 20 kHz ±1 dB |
| THD + N | >1% |
| Control and Connection Features | |
|---|---|
| Variable Electronic Crossover | Yes |
| Subsonic Filter | No |
| Dynamic Bass Optimization (DBO) | No |
| Variable Bass Boost | Yes |
| Remote Bass-Level Control Included | Not possible |
| Input Connections | L & R line-Level (RCA) |
| Speaker Connections | 2 |
| Signal Output Connections | No |
| General Specifications | |
|---|---|
| Dimensions (H x W x D – Metric/English) | 198 mm x 206 mm x 52 mm |
Scheda tecnica apri »
