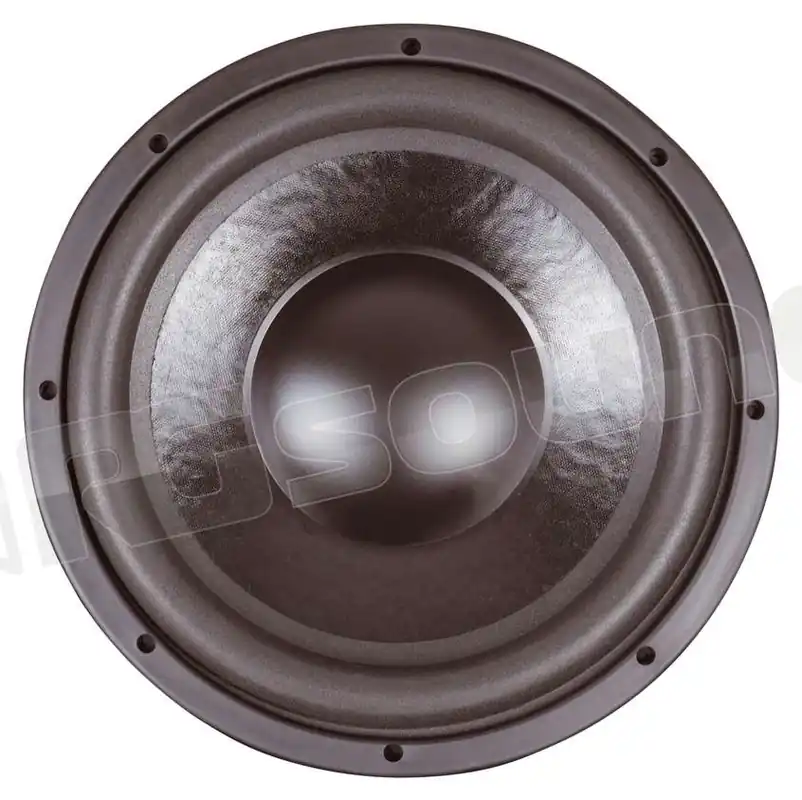

GZUW 12SQ – Subwoofer 300 mm potenza 500W RMS
– Cast basket
– Strong paper cone
– Dual voice coil 2 x 2 Ohm
– Copper voice coil
– Kapton former
– Audiophile POLYCOT spider
Woofer GZUW 12SQ
Diameter 300 mm / 12"
Mounting diameter 284 mm / 11.18"
Mounting depth 140 mm / 5.51"
Voice coil 50 mm Runddraht / 2" Round wire
Cone Verstärktes Papier / Reinforced paper
Power Handling 500 WRMS
Impedance 2 x 2 Ohm
SPL 88 dB
Xmax 15 mm / 0.59"
Fs 33.8 Hz
Qts 0.63
Vas 50,4 L / 1.78 cu.ft.
Sound Quality* ☺☺☺☺
SPL Competition* ☺
Low bass performance 20 – 50 Hz* ☺☺☺
Mid bass performance 50 – 80 Hz* ☺☺☺
Box recommendation vented 56 Liter / 1.98 cu.ft – Tube 1x 10 cm L= 26 cm
Box recommendation sealed 35 – 50 Liter / 1.24 – 1.77 cu.ft
*Describes the GZUW 12SQ subwoofer’s ability for each kind of use.
☺ = Good ability
☺☺☺☺☺☺ = Excellent ability
Manuale utente apri »
Scheda tecnica apri »
Prezzo iva inclusa
€ 15,00
