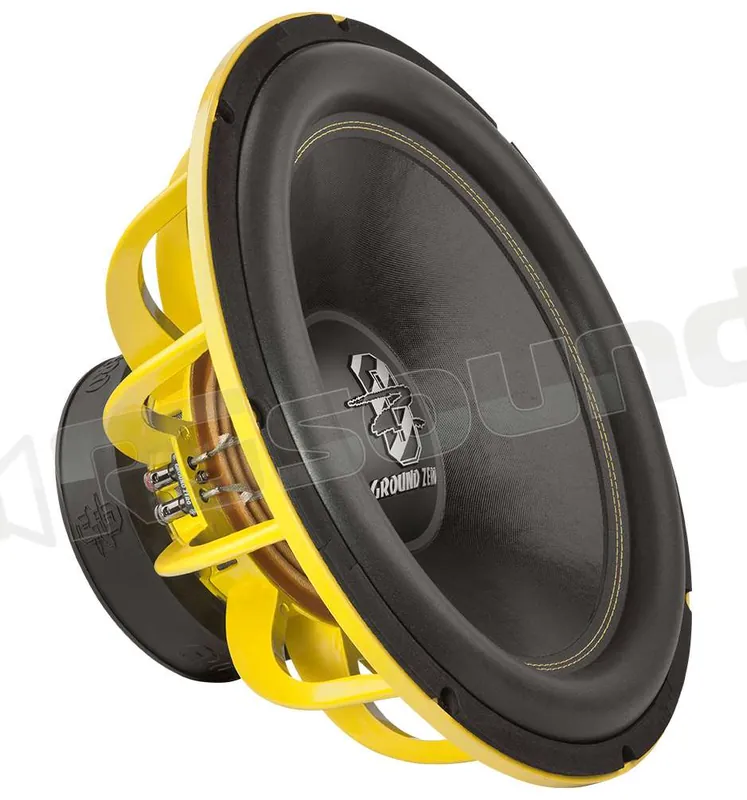

GZRW 46SPL – Subwoofer 460 mm potenza 2.000W RMS
– High-efficient high-performance subwoofer
– Reinforced paper cone & double spider
– Optimised magnet structure for maximum efficiency
– High gloss painted alu cast baskets
Woofer GZRW 46SPL
Diameter 460 mm / 18"
Mounting diameter 425 mm / 16.73"
Mounting depth 232 mm / 9.13"
Voice coil 75 mm Round wire
Cone Reinforced paper
Power Handling 2000 W SPL Power
Impedance 2 x 2 Ohm
SPL 94 dB
Xmax 22 mm / 0.9"
Fs 30 Hz
Qts 0.57
Vas 177.6 L / 6.27 cu.ft.
Sound Quality* ☺☺☺
SPL Competition* ☺☺☺☺
Low bass performance 20 – 50 Hz* ☺☺☺☺
Mid bass performance 50 – 80 Hz* ☺☺☺☺
Box recommendation vented 165 Liter / 5.83 cu.ft. – Tube 2 x Ø 16 cm – L = 30 cm
Box recommendation sealed 60 – 100 Liter / 2.12 cu.ft. – 3.53 cu.ft. net
*Describes the GZRW 46SPL subwoofer’s ability for each kind of use.
☺ = Good ability
☺☺☺☺☺☺ = Excellent ability
Manuale utente apri »
Scheda tecnica apri »
