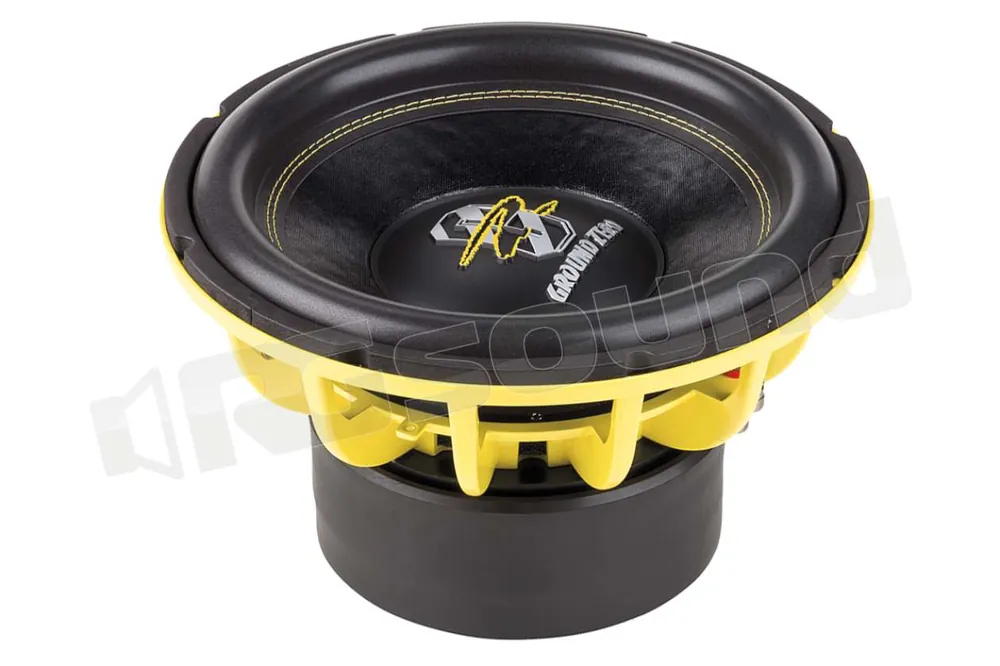

Ground Zero GZHW 12XSPL-D1 subwoofer 300 mm ad alta potenza
Triplo magnete ottimizzato Klippel
Cestello in alluminio pressofuso
Cono di carta rinforzata
Bobina in rame 75 millimetri
Terminali push
Caratteristiche GZHW 12XSPL-D1
Diameter 300 mm / 12"
Mounting diameter 281 mm / 11.06"
Mounting depth 176 mm / 6.93"
Voice coil 75 mm Runddraht / 3" Round wire
Cone Verstärktes Papier / Reinforced paper
Power Handling 3000 W SPL Power
Impedance 2 x 1 Ohm
SPL 86 dB
Xmax 40 mm / 1.57"
Fs 39.7 Hz
Qts 0.475
Vas 17.61 L / 0.62 cu.ft.
Box recommendation vented 65 Liter / 2.295 cu.ft. – Rohr / Tube 2 x 10 cm / 2 x4” – L = 27 cm / 10.63”
Box recommendation sealed 15 – 30 Liter netto / 0.53 – 1.06 cu.ft. net
