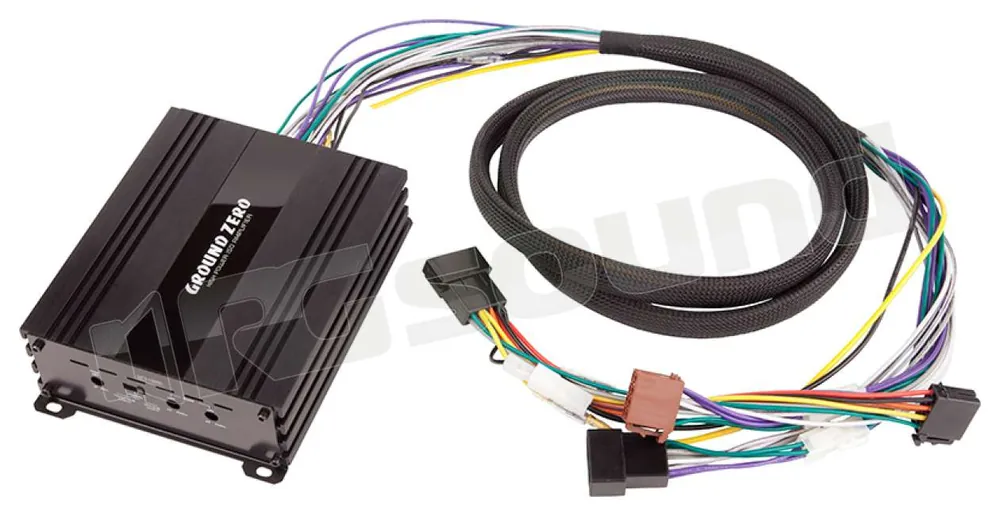

GZCS 4.60ISO – Amplificatore quattro canali plug&play con connettore ISO
– High efficient plug´n´play analog amplifier
– For any vehicle with passive sound system and iso-connection
– Variable highpass (@ 4Ch + Sub mode)
– Variable lowpass (@ Front + Sub mode)
– GZCS 4.60ISO including 2m (6.56 ft) cable harness with ISO adaption
Type: GZCS 4.60ISO 4 Channel ISO amplifier
Output Power @ 4 Ohm: 4 x 70 W
RMS Power @ 4 Ohm: 4 x 30 W (1% THD+N) / 4 x 60 W (10% THD+N)
Output Power @ 2 Ohm: 4 x 90 W
RMS Power @ 2 Ohm: 4 x 45 W (1% THD+N) / 4 x 80 W (10 THD+N)
Output Power @ 4 Ohm (3 Channel mode): 2 x 70 W & 1 x 180 W
RMS Power @ 4 Ohm (3 Channel mode): 2 x 30 W & 1 x 90 W (1% THD+N) / 2 x 60 W & 1 x 160 W (10% THD+N)
Lowpass filter (Rear): 50 Hz – 250 Hz
Highpass filter: 50 Hz – 250 Hz
Frequency response: 5 Hz – 30000 Hz (+- 1dB)
Fuse: 20 A
Dimensions (W x H x L): 165 x 52 x 135 mm / 6.5" x 2.05" x 5.31"
H.-Artnr.: 113165
Manuale utente apri »
