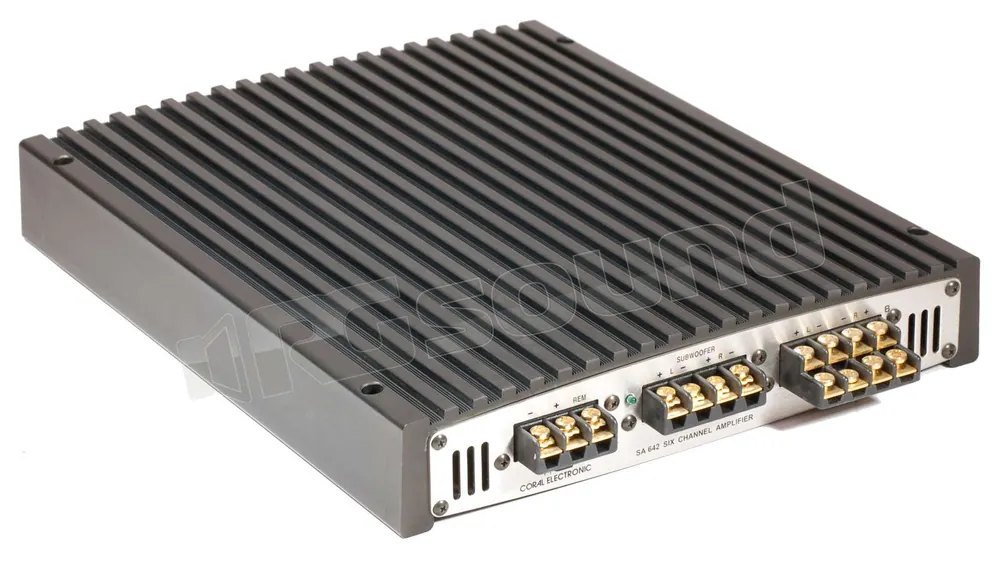

SA 642 – 6 channel power amplifier
TECHNICAL DATA
- music power (4 ohm) 6 x 80 W
- nominal power (4 ohm) rms 6 x 40 W
- high-pass cut frequency 20-160 Hz
- high-pass filter slope 12 dB/oct
- T.H.D. 0.2 %
- S/N ratio 97 dB
- input sensitivity 400 ÷ 4000 mV
- input impedance 10 Kohm
- power supply 11 ÷ 15 V
- current consumption 34 A
- size (LxWxH) 260 x 340 x 50 mm
