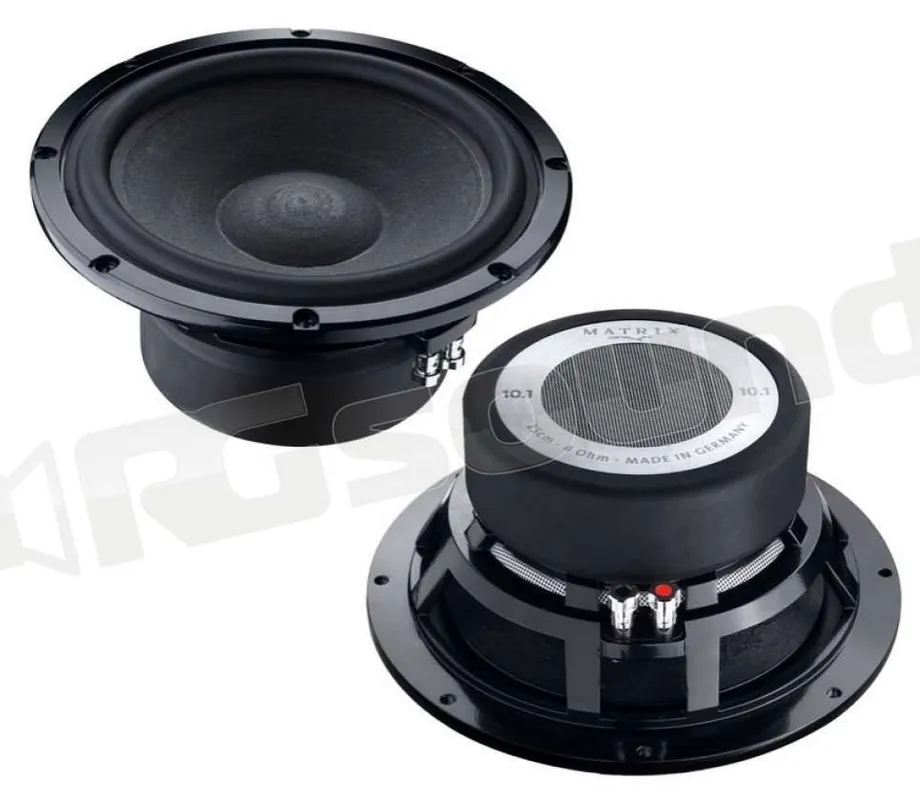

Subwoofer M10.1 Serie Matrix
Da ormai più di venti anni BRAX costituisce un'assoluta garanzia nel settore audio.
Gli altoparlanti MATRIX, prodotti con i materiali pregiati, abbinano alta qualità del suono ad un design accattivante.
SPECIFICHE:
• Custom compression terminals
• Hand-scooped sisal cone with aluminum oxide combines low weight and strength
• High end design philosophy engineered for sound quality
• Highly insulated eddy-current-free voice coil
• Rubber surround for puristic sound quality
• Specifically designed die-cast basket
| Description | Value |
|---|---|
| Size | 10" (25cm) |
| Nominal Impedance | 4-Ohms |
| Power Handling | 600 Watts RMS |
| Voice Coil Diameter | 2.5" (65mm) |
| Magnet Weight | |
| Speaker Connector | Compression Terminals |
| Fs (Hz) | 35.75 |
| Re (Ohms) | 3.6 |
| Le (mH) | |
| Qms | 10.32 |
| Qes | 0.56 |
| Qts | 0.53 |
| Vas (Liters) | 1.24 cu.ft. (35.35 Liters) |
| Sd (cm2) | 346 |
| SPL (dB @ 1w/1m) | 86.46 |
| Xmax (mm) | 12.5 |
| Woofer Displacement | |
| Cutout Diameter | 9.25" (235mm) |
| Mounting Depth | 4.84" (123mm) |
| Shipping Weight | 17 Lbs. (7.714Kg) |
