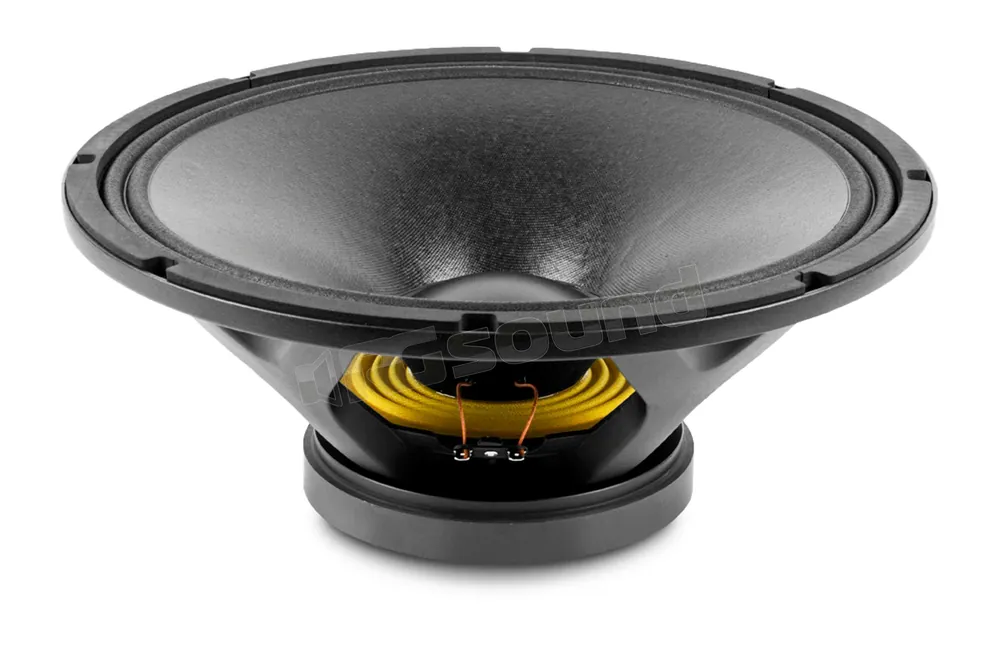

Beyma 15WR400 Subwoofer 38 cm Altoparlanti home e professional – Sub

Beyma 15WR400 caratteristiche tecniche



Nominal diameter

380 mm 15 in

Nominal impedance

8 Ohm

Minimum impedance

6.4 ohm

Power capacity

400 W AES

Program power

800 W

Sensitivity

99 dB 1 W @ 1 m @ 2Π

Frequency range

40-4000 Hz

Recommended enclosure volume

70 / 150 l 2.45 / 5.25 ft.³

Voice coil diameter

77 mm 3 in

BL factor

19.2 N/A

Moving mass

0.091 kg

Winding length

16 mm

Air gap height

8 mm

Xdamage pp

30 mm



THIELE SMALL PARAMETERS

Fs

36 Hz

Re

5.5 ohm

Qms

8.2

Qes

0.32

Qts

0.3

Vas

224 l

Cms

205 µm / N

Rms

2.5 kg/s

Efficiency %

3.4

Sd

0.088 m²

Xmax

6.3 mm

Vd

555 cm³

Le @1 kHz

1mH

CONSTRUCTIVE DETAILS

Depth

160 mm 6.30 in

Net weight

6.1 kg 13.4 lb

Total weight

7.1 kg 15.6 lb

Magnet

Ferrite

Prezzo iva inclusa

€ 105,00
